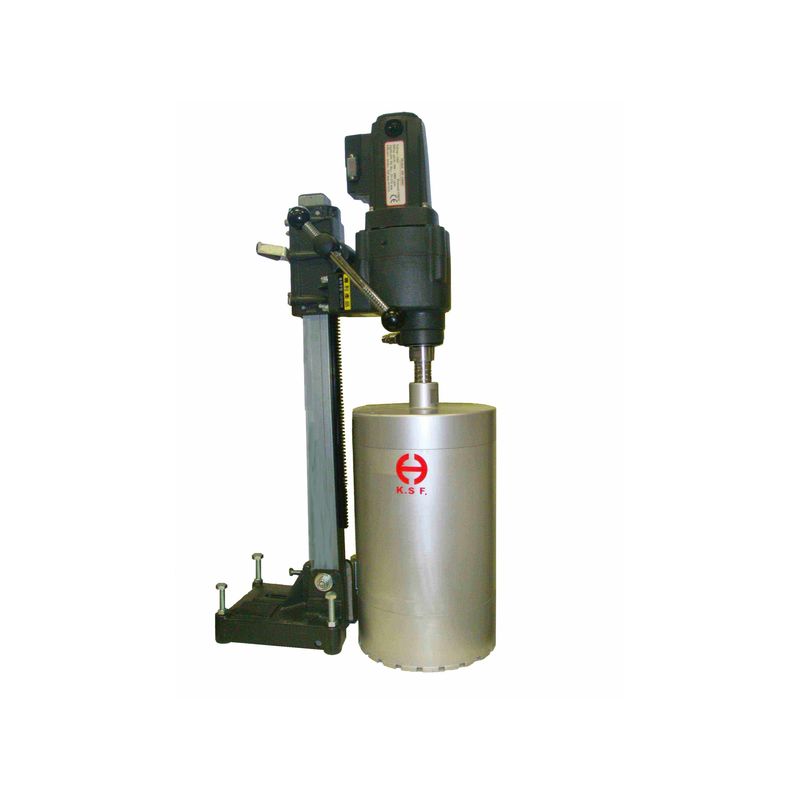

KSF DF1000 | Diamond core drill Ø 25 to 254 mm
€1,900.00 excl. VAT
- Powerful motor, large gear case and gear system for professional drilling.
- Motor overload circuit protector.
- Patented LED electric current indicator: Operates with the yellow indicator light on in order to protect the motor and improve drilling efficiency.
- Clutch system: Built in adjustable clutch system to protect the mechanism when the core bits get stuck. Adjust from outside gear case.
- Feeding handle insulation to prevent electric shock from drilling the electric cable or power source.
- Drilling angle can be adjust up to 45.
- Two-speed function.
- High-quality, robust aluminium construction.
- Compact design, easy to carry.
Wet Diamond Core Drilling Machine with it’s stand specially designed for an intensive use to diameters up to 254 mm
Characteristic | Value |
---|---|
Drilling range | Ø 25 to 254 mm |
Voltage | 230V - 50Hz |
Demand | 2640-3520W |
Idling speed | 500/1000 rpm |
Effective stroke | 560 mm |
Machine height spidle | 750 mm |
Toolbox dimension | 490 x 310 x 830 mm |
Shaft | 1 1/4 " UNC Male |
Machine weight | 22.5kg |
